| نام تجاری: | RFJ Brand |
| شماره مدل: | 4PES-15Y |
| مقدار تولیدی: | 1pc |
| قیمت: | discussed |
| زمان تحویل: | 15-20 Days |
| شرایط پرداخت: | T/T, Western Union, MoneyGram |

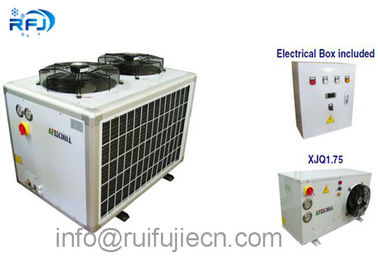

Hermetic middle Low temperature condenser unit R410 4PES-15Y
Specifications
1.condensing unit
2. compressor,world famous
3.easy to install
4.automatic control
5.ISO9001:2008
condensing unit Features:
1, Compact structure, strong and durable
2, Uses high efficiency air-cooled condenser and realizes high heat exchange; Low power consumption
3, Uses R22, R134A, R404A and R507A as refrigerant
4, Used in medium, low and super low working condition
5, Widely used in foods, chemical, pharmaceutical, display cases, supermarket and industrial refrigeration
6, Easy operation: Design of unit almost considers installation of users, site installation only needs simple works and machine can be put in operation
7, Engineering practice conditions, design and assemble all types air-cooled condensing unit
8, Warranty period: 1 year
9, , Bock, Copeland, Daikin and SANYO brand names are available
10, Customized specifications are accepted
Components:
Compresor, crankcase, oil pressure diffrential, air-cooled condenser, refrigerant receiver, dryer filter, gauge panel,pressure controller.electrical box.

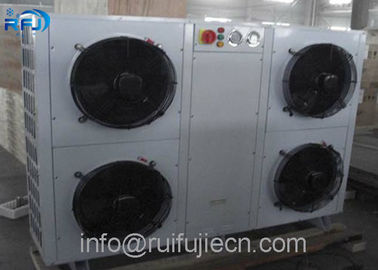

| Side Discharge Compressor Condensing Unit (Ⅶ Type) | ||||
| Product Description: 1.condensing unit was assembled completely,installation is not constraint by site,a little space occupation. 2.original compressor,inner of condensing unit with the perfect protection system. 3.on the design of side discharge,and condenser and compressor separate to increase the speed of heat transfer and efficiency maximum. 4.with external rotor motor,low noise,low power,large air volume. |
||||
| Technical Parameters | ||||
| performance Modle | RFJ080H(VII) | RFJ100H(VII) | ||
| Norminal refrigerating capacity (KW) |
13.0 | 16.5 | ||
| area(㎡) | 70 | 85 | ||
| Motor power (W) |
2*180W | 2*250W | ||
| Dia of fan (mm) | Φ400 | Φ450 | ||
| Number of electric motors (a) | 2 | 2 | ||
| Air Voume (M3/H) |
4500x2 | 5000x2 | ||
| dimension(mm) | L(mm) | 1700 | 1800 | |
| w(mm) | 700 | 750 | ||
| 850 | 940 | |||
| installation size(mm) | a(mm) | 1300 | 1400 | |
| b(mm) | 660 | 710 | ||
| performance Modle | RFJ120H(VII) | RFJ150H(VII) | RFJ200H(VII) | |
| Norminal refrigerating capacity (KW) |
21 | 25 | 29 | |
| area(㎡) | 105 | 130 | 130 | |
| Motor power (W) |
2*250W | 2*450W | 2*600W | |
| Dia of fan (mm) | Φ450 | Φ500 | Φ550 | |
| Number of electric motors (a) | 2 | 2 | 2 | |
| Air Voume (M3/H) |
5000x2 | 7000x2 | 8500x2 | |
| dimension(mm) | L(mm) | 1900 | 2000 | 2200 |
| w(mm) | 800 | 870 | 870 | |
| H(mm) | 1040 | 1150 | 1150 | |
| 1040 | 1150 | 1150 | ||
| installation size(mm) | a(mm) | 1500 | 1600 | 1800 |
| b(mm) | 760 | 830 | 830 | |
| Note:1.above datas are on the base of condensing temperature is 40℃ ,evaporation temperature is -18℃ , 2.reserve the right of design modified without prior inform. |
||||
