جزئیات محصول:
پرداخت:
|
| Temperature: | -10-0℃ | Refrigerant:: | Freon |
|---|---|---|---|
| Size: | Medium | Structure:: | Assembled |
| Model NO: | RFJ-BRA28M/240 | Use Nature: | Distribution |
| Suitable for: | Cold Room | Usage: | Food |
| Warranty: | 1-2 Years | گواهی: | RoHS, ISO, CE, CCC |
| Condition:: | New | Trademark: | RFJ |
| ransport Package: | Customizes Package | ||
| برجسته: | ,,bitzer condenser unit |
||

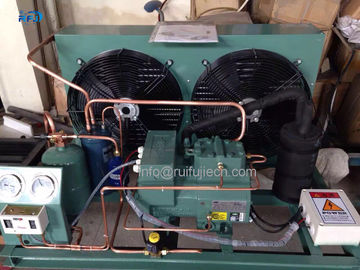

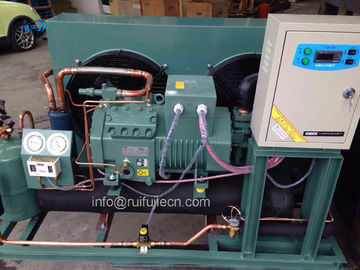

Middle Low Temperature V Type Condenser Housing Type Compressor Condensing Unit
| Box Type Compressor Condensing Unit Dimensions | |||||||
| Unit Model | A | B | C | D | H | H1 | Installation bore |
| RFJ-BRA09M/60 RFJ-BRA06H/60 | 1050 | 750 | 700 | 850 | 1380 | 1500 | 4-θ13 |
| RFJ-BRA12M/80 RFJ-BRA09H/80 | 1150 | 880 | 830 | 950 | 1500 | 1630 | 4-θ13 |
| RFJ-BRA14M/100 RFJ-BRA10H/100 | 1370 | 880 | 830 | 1170 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA18M/120 RFJ-BRA12H/120 | 1450 | 950 | 900 | 1250 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA23M/160 RFJ-BRA15H/160 | 1610 | 950 | 900 | 1410 | 1600 | 1730 | 4-θ13 |
| RFJ-BRA28M/200 RFJ-BRA20H/200 | 1710 | 950 | 900 | 1510 | 1650 | 1830 | 4-θ13 |
| RFJ-BRA34M/240 RFJ-BRA25H/240 | 2120 | 1050 | 1050 | 1920 | 1780 | 1900 | 4-θ13 |
| RFJ-BRA30H/270 | 2300 | 1050 | 1050 | 2100 | 1780 | 1900 | 4-θ13 |
| RFJ-BRA44M/300 RFJ-BRA35H/300 | 2450 | 1050 | 1050 | 2250 | 1780 | 1900 | 4-θ13 |
|
|
|||||||||||
| BOX Type Compressor Condensing Unit | |||||||||||
| For box type condensing unit,we adopt high-performance compressor,optimized design condenser,reliable control components.overall design is reasonable,top discharge for condenser,which can reduce the interference to surrounding environment,access to the idea of environmentally design;metal structure for the overall housing,finished by anti-corrosion coating for the surface,with beautiful appearance,convenient in installation and stable for operation. Condensing unit included:pressure controller,liquid receiver,filter drier,pressure gauge and solenoid valve etc high quality refrigeration parts. |
|||||||||||
| Technical Parameters:medium & Low temperature unit parameters | |||||||||||
| Unit model | compressor model | Norminal refrigerating capacity (KW) |
Powerinput (KW) |
Power supply (KW) |
Fan of condenser | Liquid receiver (L) |
Inlet (mm) |
Outlet (mm) |
|||
| Quantity | Dimaeter of Vane (mm) |
Air Voume (M3/H) |
Moter power (W) |
||||||||
| RFJ-BRA09M/60 | 4TES-9Y | 11.41 | 6.74 | 380v 3HP 50HZ | 1 | 500 | 7000 | 1x450 | 8 | 25 | 19 |
| RFJ-BRA12M/80 | 4PES-12Y | 12.64 | 7.34 | 1 | 600 | 11000 | 1x780 | 10 | 25 | 19 | |
| RFJ-BRA14M/100 | 4NES-14Y | 15.50 | 9.11 | 2 | 450 | 10000 | 2x250 | 12 | 28 | 22 | |
| RFJ-BRA18M/120 | 4HE-18Y | 21.90 | 12.67 | 2 | 500 | 14000 | 2x450 | 15 | 28 | 22 | |
| RFJ-BRA23M/160 | 4GE-23Y | 25.80 | 15.06 | 2 | 600 | 22000 | 2x780 | 20 | 28 | 22 | |
| RFJ-BRA28M/200 | 6HE-28Y | 32.30 | 18.68 | 2 | 600 | 22000 | 2x780 | 25 | 28 | 22 | |
| RFJ-BRA34M/240 | 6GE-34Y | 38.80 | 22.90 | 3 | 500 | 21000 | 3x450 | 35 | 38 | 25 | |
| RFJ-BRA44M/300 | 6FE-44Y | 46.20 | 27.52 | 3 | 600 | 33000 | 3x780 | 45 | 42 | 28 | |
|
Note: Nominal refrigerating capacity and power input are based on conditions of ambient temperature 32℃,evaporating temperature -23℃ and refrigerant R404A. |
|||||||||||
