| نام تجاری: | Performer |
| شماره مدل: | SM110S3VC(SM110-3VM) |
| مقدار تولیدی: | 1pcs |
| قیمت: | discussed |
| زمان تحویل: | 7-10 working days after receiving payment |
| شرایط پرداخت: | T/T، وسترن یونیون |

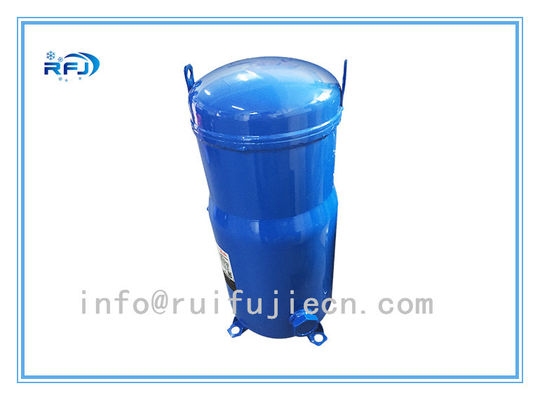

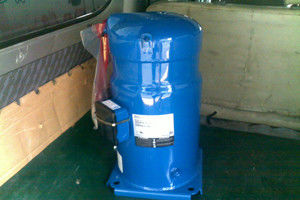

Performer compressors are scroll compressors designed for both 50Hz and 60Hz operation, compatible with R22a and R407c refrigerants.
Available models include: SM084, SM090, SM100, SM110, SM115, SM120, SM125, SM148, SM160, SM161, SM175, SM185, SY240, SY300
| Model | Nominal Cap. TR | Nominal Cooling Capacity W | Btu/h | Power Input KW | Cop W/W | E.E.R. Btu/h/W | Swept Volume cm/rew | Displacement m/h | Oil Charge dm |
|---|---|---|---|---|---|---|---|---|---|
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 114.5 | 19.92 | 3.3 |
| SM090 | 7.5 | 21800 | 74400 | 6.54 | 3.33 | 11.4 | 120.5 | 20.97 | 3.3 |
| SM100 | 8 | 23100 | 79000 | 6.96 | 3.33 | 11.3 | 127.2 | 22.13 | 3.3 |
| SM110 | 9 | 25900 | 88600 | 7.82 | 3.32 | 11.3 | 144.2 | 25.09 | 3.3 |
| SM112 | 9.5 | 27600 | 94400 | 7.92 | 3.49 | 11.9 | 151.5 | 26.36 | 3.3 |
| SM115 | 9.5 | 28000 | 95600 | 8.31 | 3.37 | 11.5 | 155 | 26.97 | 3.8 |
| SM120 | 10 | 30100 | 102800 | 8.96 | 3.36 | 11.5 | 166.6 | 28.99 | 3.3 |
| SM124 | 10 | 31200 | 106300 | 8.75 | 3.56 | 12.2 | 169.5 | 29.5 | 3.3 |
| SM125 | 10 | 30100 | 102800 | 8.93 | 3.37 | 11.5 | 166.6 | 28.99 | 3.8 |
| SM147 | 12 | 36000 | 123000 | 10.08 | 3.58 | 12.2 | 193.5 | 33.7 | 3.3 |
| SM148 | 12 | 36100 | 123100 | 10.8 | 3.34 | 11.4 | 199 | 34.6 | 3.6 |
| SM160 | 13 | 39100 | 133500 | 11.6 | 3.37 | 11.5 | 216.6 | 37.69 | 4 |
| SM161 | 13 | 39000 | 133200 | 11.59 | 3.37 | 11.5 | 216.6 | 37.69 | 3.6 |
| SM175 | 14 | 42000 | 143400 | 12.46 | 3.37 | 11.5 | 233 | 40.54 | 6.2 |
| Model | Refrigerant | Power | Net Weight |
|---|---|---|---|
| SZ100-3/9VM | R134A/R407C | 8HP | 72KG |
| SZ110-3/9Vm | R407C | 9HP | 72KG |
| SZ120-3/9VM | R407C | 10HP | 80KG |
| SZ125-3RM | R407C | 10HP | 80KG |
| SZ148-3/9VAM | R407C | 12HP | 86KG |
| SZ161-T3/9VC | R407C | 13HP | 86KG |
| SZ/Y185-3/9CAM | R407C | 15HP | 103KG |
| SZ240A3/9CBM | R407C | 20HP | 160KG |
| SZ300A3/9CBM | R407C | 25HP | 160KG |
| SM084-4VM | R22 | 7HP | 72KG |
| SM090-4VM | R22 | 7.5HP | 72KG |
| SM100-4VM | R22 | 8HP | 72KG |
| SM110-4VM | R22 | 9HP | 80KG |
| SM112A4ACB | R22 | 9HP | 80KG |
| SM115-4CAM | R22 | 9.5HP | 80KG |
| SM120-4VM | R22 | 10HP | 80KG |
| SM148-4VAM | R22 | 12HP | 86KG |
| SM125-4CAM | R22 | 10HP | 80KG |
| SM124A4ACB | R22 | 10HP | 80KG |
| SM147A4ACB | R22 | 12HP | 86KG |
| SM161-4VAM | R22 | 13HP | 86KG |
| SM160-4CBM | R22 | 13HP | 93KG |
| SM175-4CAM | R22 | 14HP | 103KG |
| SM175-4RM | R22 | 14HP | 103KG |
| SM185-4CAM | R22 | 15HP | 103KG |
| SM185-4RM | R22 | 15HP | 103KG |
| SY240A4CBM | R22 | 20HP | 160KG |
| SY300ACBM | R22 | 25HP | 160KG |
| SY300A4CAM | R22 | 25HP | 160KG |
| SY380A4CBM | R22 | 31HP | 225KG |
|
|
| نام تجاری: | Performer |
| شماره مدل: | SM110S3VC(SM110-3VM) |
| مقدار تولیدی: | 1pcs |
| قیمت: | discussed |
| جزئیات بسته بندی: | Wooden case |
| شرایط پرداخت: | T/T، وسترن یونیون |
Performer compressors are scroll compressors designed for both 50Hz and 60Hz operation, compatible with R22a and R407c refrigerants.
Available models include: SM084, SM090, SM100, SM110, SM115, SM120, SM125, SM148, SM160, SM161, SM175, SM185, SY240, SY300
| Model | Nominal Cap. TR | Nominal Cooling Capacity W | Btu/h | Power Input KW | Cop W/W | E.E.R. Btu/h/W | Swept Volume cm/rew | Displacement m/h | Oil Charge dm |
|---|---|---|---|---|---|---|---|---|---|
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 114.5 | 19.92 | 3.3 |
| SM090 | 7.5 | 21800 | 74400 | 6.54 | 3.33 | 11.4 | 120.5 | 20.97 | 3.3 |
| SM100 | 8 | 23100 | 79000 | 6.96 | 3.33 | 11.3 | 127.2 | 22.13 | 3.3 |
| SM110 | 9 | 25900 | 88600 | 7.82 | 3.32 | 11.3 | 144.2 | 25.09 | 3.3 |
| SM112 | 9.5 | 27600 | 94400 | 7.92 | 3.49 | 11.9 | 151.5 | 26.36 | 3.3 |
| SM115 | 9.5 | 28000 | 95600 | 8.31 | 3.37 | 11.5 | 155 | 26.97 | 3.8 |
| SM120 | 10 | 30100 | 102800 | 8.96 | 3.36 | 11.5 | 166.6 | 28.99 | 3.3 |
| SM124 | 10 | 31200 | 106300 | 8.75 | 3.56 | 12.2 | 169.5 | 29.5 | 3.3 |
| SM125 | 10 | 30100 | 102800 | 8.93 | 3.37 | 11.5 | 166.6 | 28.99 | 3.8 |
| SM147 | 12 | 36000 | 123000 | 10.08 | 3.58 | 12.2 | 193.5 | 33.7 | 3.3 |
| SM148 | 12 | 36100 | 123100 | 10.8 | 3.34 | 11.4 | 199 | 34.6 | 3.6 |
| SM160 | 13 | 39100 | 133500 | 11.6 | 3.37 | 11.5 | 216.6 | 37.69 | 4 |
| SM161 | 13 | 39000 | 133200 | 11.59 | 3.37 | 11.5 | 216.6 | 37.69 | 3.6 |
| SM175 | 14 | 42000 | 143400 | 12.46 | 3.37 | 11.5 | 233 | 40.54 | 6.2 |
| Model | Refrigerant | Power | Net Weight |
|---|---|---|---|
| SZ100-3/9VM | R134A/R407C | 8HP | 72KG |
| SZ110-3/9Vm | R407C | 9HP | 72KG |
| SZ120-3/9VM | R407C | 10HP | 80KG |
| SZ125-3RM | R407C | 10HP | 80KG |
| SZ148-3/9VAM | R407C | 12HP | 86KG |
| SZ161-T3/9VC | R407C | 13HP | 86KG |
| SZ/Y185-3/9CAM | R407C | 15HP | 103KG |
| SZ240A3/9CBM | R407C | 20HP | 160KG |
| SZ300A3/9CBM | R407C | 25HP | 160KG |
| SM084-4VM | R22 | 7HP | 72KG |
| SM090-4VM | R22 | 7.5HP | 72KG |
| SM100-4VM | R22 | 8HP | 72KG |
| SM110-4VM | R22 | 9HP | 80KG |
| SM112A4ACB | R22 | 9HP | 80KG |
| SM115-4CAM | R22 | 9.5HP | 80KG |
| SM120-4VM | R22 | 10HP | 80KG |
| SM148-4VAM | R22 | 12HP | 86KG |
| SM125-4CAM | R22 | 10HP | 80KG |
| SM124A4ACB | R22 | 10HP | 80KG |
| SM147A4ACB | R22 | 12HP | 86KG |
| SM161-4VAM | R22 | 13HP | 86KG |
| SM160-4CBM | R22 | 13HP | 93KG |
| SM175-4CAM | R22 | 14HP | 103KG |
| SM175-4RM | R22 | 14HP | 103KG |
| SM185-4CAM | R22 | 15HP | 103KG |
| SM185-4RM | R22 | 15HP | 103KG |
| SY240A4CBM | R22 | 20HP | 160KG |
| SY300ACBM | R22 | 25HP | 160KG |
| SY300A4CAM | R22 | 25HP | 160KG |
| SY380A4CBM | R22 | 31HP | 225KG |
