High-efficiency DL340 Air Cooler for Super Large Commercial Cold Warehouse

Name: High-efficiency DL340 Air Cooler for Super Large Commercial Cold Warehouse
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DL-69.4/340
Price: 5,000.00 USD
Availability: InStock

نام تجاری:	Ruifujie
شماره مدل:	DL-69.4/340
مقدار تولیدی:	1
قیمت:	Discussed
زمان تحویل:	1 ماه
شرایط پرداخت:	T/T، وسترن یونیون

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

مدل:

DL-69.4/340

ظرفیت اسمی تبرید:

69.4 کیلووات (69400 وات)

منطقه همسان:

340

ولتاژ نامی:

380 ولت

برنامه:

اتاق سرد، فریزر

MOQ:

1 مجموعه

گارانتی:

1 سال

بسته بندی:

بسته بندی چوبی

جزئیات بسته بندی:

کیس چوبی

قابلیت ارائه:

100 عدد

برجسته کردن:

DL340 commercial air cooler

large cold warehouse evaporator

high-efficiency refrigeration evaporator

توضیحات محصول

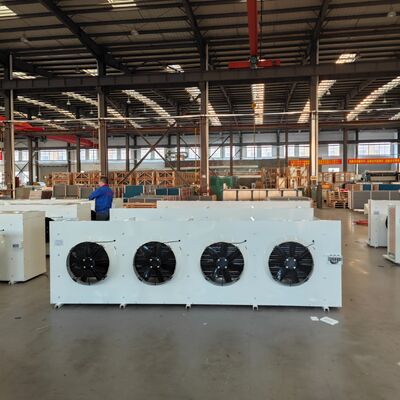

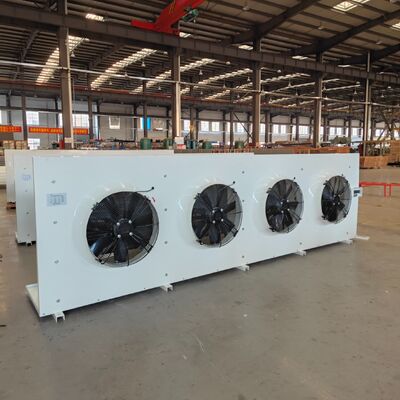

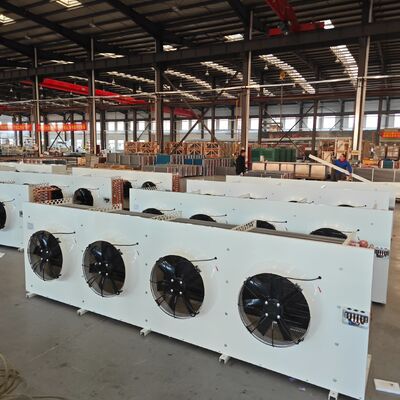

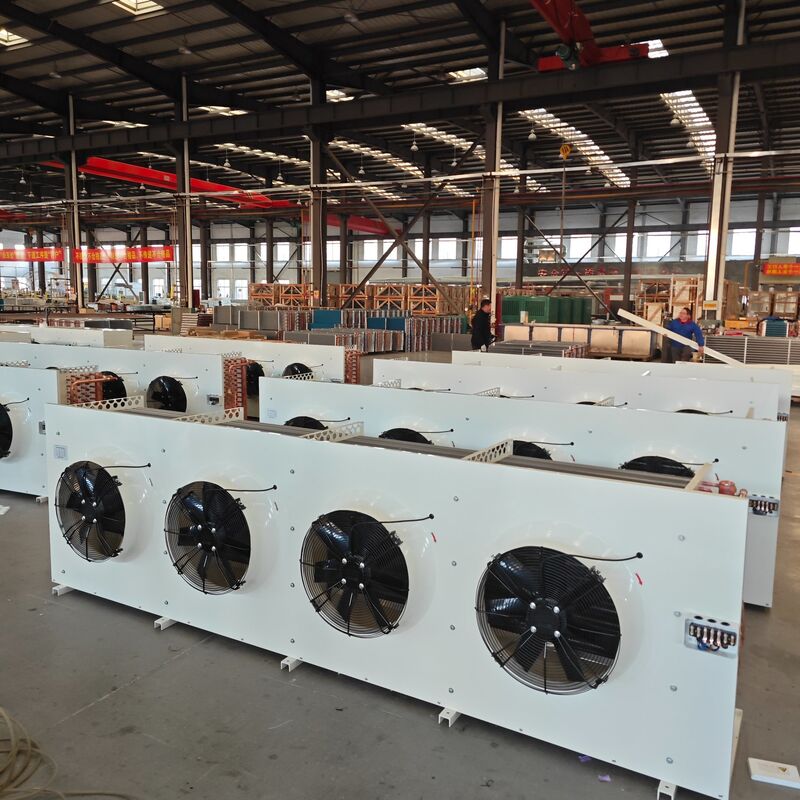

High-efficiency DL340 Air Cooler for Super Large Commercial Cold Warehouse

The DL340 Air Cooler delivers exceptional cooling performance for large-scale commercial cold storage facilities, ensuring stable temperature control and efficient operation.

Product Advantages

Strong Cooling Performance: 69.5kW nominal cooling capacity, perfectly matched for 340㎡ spacious cold rooms, maintaining constant low temperature stability year-round.
Balanced Air Circulation: 24000m³/H stable air volume with 15m air supply distance, ensuring even temperature distribution in ultra-large storage spaces.
Four-fan Stable Configuration: Equipped with four 500mm diameter fans under 380V voltage, suitable for long-term uninterrupted commercial operation.
Quick Frost Removing Ability: 9600W fin defrost and 2400W tray defrost work together, rapidly clearing frost in high humidity refrigeration environments.
Large-flow Pipeline Design: 38.6L large tube volume plus enlarged pipe diameter, accelerating refrigerant flow and significantly improving heat exchange efficiency.

Technical Specifications

Parameter	Specification
Model	DL-69.5/340 (DL340)
Nominal Refrigeration Capacity	69.5 kW
Applicable Cold Room Area	340 ㎡
Tube Volume	38.6 L
Refrigerant Inlet/Outlet Diameter	φ32 / φ50 mm
Fan Quantity	4 units
Fan Diameter	500 mm
Working Voltage	380 V
Total Fan Power	1656 W (4 × 414 W)
Air Volume	24000 m³/H
Air Throw Range	15 m
Fin Defrost Power	9600 W
Drain Pan Defrost Power	2400 W

Company Profile

Shenzhen Ruifujie Technology Co., Ltd. has over 20 years of professional experience in the refrigeration industry. We independently develop scroll, piston, rotor, semi-hermetic and screw compressors, with extensive expertise in cold storage, freezing equipment and ice machines. We offer comprehensive OEM/ODM refrigeration services, export refrigeration products globally, and are recognized for reliable compressors, professional services and competitive pricing.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union - 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

When can I get the price?

Usually we quote within 8 hours after we get your inquiry.

What are the main products?

Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators

What is your delivery time?

1. For Sample order in stock, we aim to ship the compressor within 3 days.
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.

What about the services and aftersale?

Guarantee quality, the warranty period is 1 Year.

What are your price terms?

TT/WESTERN UNION

برچسب ها:

اواپراتور در سیستم تبرید

اواپراتور کولر هوا

DL340 commercial air cooler,large cold warehouse evaporator,high-efficiency refrigeration evaporator
