| نام تجاری: | original |
| شماره مدل: | TX2 068Z3206 |
| مقدار تولیدی: | 1pcs |
| قیمت: | discussed |
| زمان تحویل: | 7-10 working days after received your payment |
| شرایط پرداخت: | L/C, T/T, Western Union |
Tes20 Series Refrigeration Valves ( 067b3352 ) R404a / R507
Specifications:

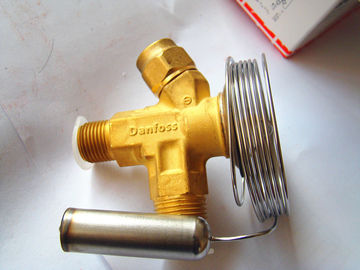

thermostatic expansion valves(Tex2)
Regriratant: R22/R404A/R507
Thermal expansion valve, expansion valve,thermostatic expansion valve,A/C expansion valve Type
TEX2 belong the Outer balance
Thermostatic expansion valve regulate the flow of refrigerant liquid into the evaporator.
The flow is controlled by the valve.

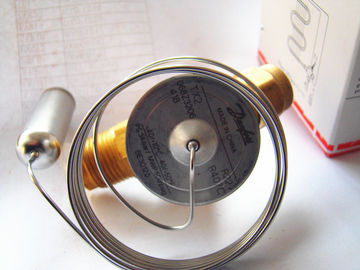

The thermal bulb senses the evaporator heat and adjusts the valve to admit refrigerant liquid in accordance with the refrigerating load.
More information please check below file:
| Refrigerant | Model | equalizer | Capillary | Connection size | code | ||||
| inlet×outlet | N series -40+10 |
N series -40-5 |
NL series -40-15 |
||||||
| m | in.×in. | mm×mm | Without mop | With mop | Without mop | With mop | |||
| R22 | TX 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3206 | 068Z3208 | 068Z3224 | 068Z3226 |
| TEX 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3209 | 068Z3211 | 068Z3225 | 068Z3227 | |
| R134a | TN 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3346 | 068Z3347 | 068Z3393 | 068Z3369 |
| TEN 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3348 | 068Z3349 | 068Z3392 | 068Z3370 | |
| R404A /R507 |
TS 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3400 | 068Z3402 | 068Z3406 | 068Z3408 |
| TES 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3403 | 068Z3405 | 068Z3407 | 068Z3409 | |
| R12 | TF 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3202 | 068Z3236 | 068Z3220 | 068Z3222 |
| TEF 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3204 | 068Z3237 | 068Z3221 | 068Z3223 | |
| R502 | TY 2 | internal | 1.5 | 3/8*1/2 | 10*12 | 068Z3212 | 068Z3214 | 068Z3230 | 068Z3232 |
| TEY 2 | external | 1.5 | 3/8*1/2 | 10*12 | 068Z3215 | 068Z3217 | 068Z3231 | 068Z3233 |
|
|
