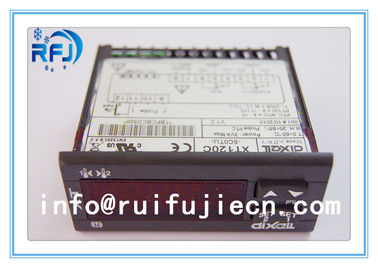

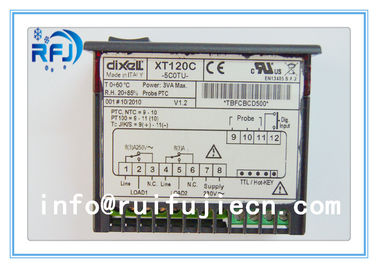

Black Dixell Thermostatic Controller , Digital Temperature Controller Dual output thermostat XT120C

1.Shell: ABS sublight flame retardant plastic;

2.Dimensions: front 32x74 mm;Deep 60 mm

3.Mounting dimensions: fixed in the open hole for 71x29mm panel;

4.Overall protection level: IP20;Front panel protection level: IP65;

5.Connecting terminal: bolt pressure, the wire diameter is less than 2.5mm2

6.Power supply: 230Vac + 10%, 50/60hz

7.Power consumption: maximum 3VA;

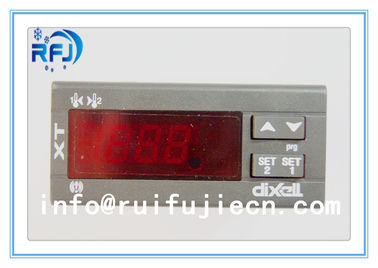

8.Display: 3 red digital tubes, 14.2 mm high;

9.Input: 2 channels NTC or PTC or PT100 or TC-J or TC-K input

10.Output relay: compressor/plus hotline: 20(8)A 250Vac

11.Data storage: electrically erasable electronic writing memory (EEPROM).

12Control level: 1B;Environmental level: 2;Software level: A;

13.Maximum insulation voltage: 2500V;Grade of overvoltage: II;

14.Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.

15.Relative humidity: 20~85RH% (unexposed)

16.Measure and control temperature range: NTC: - 40 ~ 110 ° C;PTC: - 50 ~ 150 ° C;PT100:60-200 - plus;TC - J: 0 to + 600 ℃, K: 0 to + 999 ℃

17.Resolution: 0.1 ° C or 1 ° C;Precision (at the ambient temperature of 25 ° C), plus or minus 1 ° C + 1
