| نام تجاری: | original |
| شماره مدل: | KVL series |
| مقدار تولیدی: | 1pcs |
| قیمت: | discussed |
| زمان تحویل: | 7-10 working days after received your payment |
| شرایط پرداخت: | L/C, T/T, Western Union |

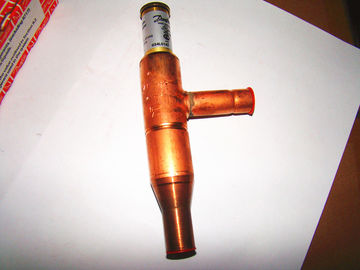

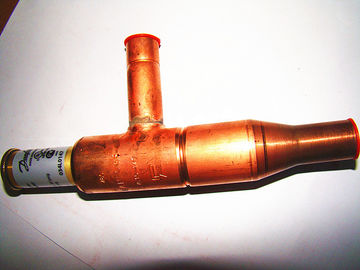

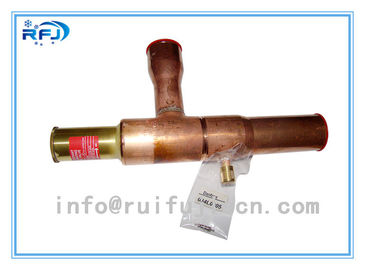

Refrigeration Crankcase Pressure Regulaor KVL Series
Specifications:
Crankcase pressure regulator type KVL is fitted in the suction line ahead of the compressor.
The KVL protects the compressor motor against overload during start-up after long standstill periods or after defrost periods.
More Models as below:
| Type | Rated capacity in (kw) | solder connection (inch) |
Code no. | |||
| R22 | R134a | R404A/507 | R407C | |||
| KVL12 | 7.1 | 5.3 | 6.3 | 6.5 | 1/2 | 034L0043 |
| KVL15 | 7.1 | 5.3 | 6.3 | 6.5 | 5/8 | 034L0049 |
| KVL22 | 7.1 | 5.3 | 6.3 | 6.5 | 7/8 | 034L0045 |
| KVL28 | 17.8 | 13.2 | 15.9 | 16.4 | 1 1/8 | 034L0046 |
| KVL35 | 17.8 | 13.2 | 15.9 | 16.4 | 1 3/8 | 034L0052 |
