| Material: | Brass | Power: | Manual |
|---|---|---|---|
| Application: | Refrigeration Parts | Export Markets: | Global |
| Usage: | Refrigeration feild | Packing: | Carton |
| برجسته: | refrigeration and air conditioning tools and equipment,danfoss expansion valve,danfoss expansion valve |
||

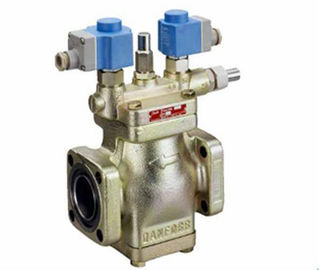

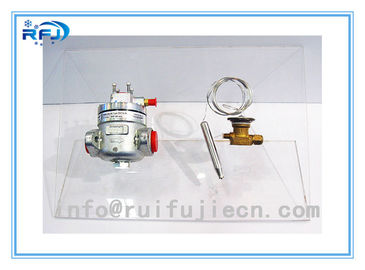

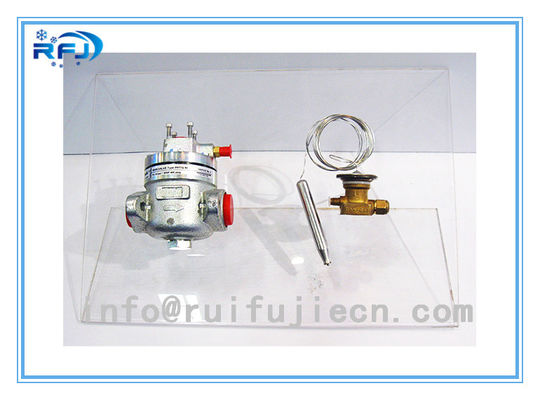

Refrigeration Industry Controls PM Pressure temperature regulators
Specifications:
PM Series valves are controlled by a pilot valve for regulating the temperature and pressure refrigeration systems to control the main valve.
PM main valve can be used in the refrigeration system high / low side suction wet / dry suction pipeline, and no phase transition liquid line (ie, no swelling phenomenon at the valve). PM main valve function depends entirely on the pilot valve is connected.
PM1 main valve can be mounted directly on a pilot valve,
and PM3 main valve can be mounted directly on three pilot valve.
A PM main valve installed simultaneously on several pilot valve can achieve a variety of different regulatory functions.
Pilot valve with threaded connection, can be directly mounted on the main valve can also be installed in the external impulse pipe.
More Models as below:
| Industry Controls | ||||||||||
| PM Pressure/temperature regulators | ||||||||||
| Part Number |
Model No. |
Rated Liquid Cap. (kw) | Rated suction gas Cap. (kw) | Rated hot gas Cap. (kw) | ||||||
| R22 | R134a | R404a | R22 | R134a | R404a | R22 | R134a | R404a | ||
| 027F1001 | PM1-20 | 164 | 157 | 119 | 18 | 14 | 16 | 55 | 45 | 45 |
| 027F1006 | PM1-25 | 258 | 247 | 186 | 30 | 23 | 27 | 97 | 79 | 79 |
| 027F1011 | PM1-32 | 399 | 381 | 287 | 44 | 34 | 40 | 152 | 123 | 123 |
| 027F1016 | PM1-40 | 703 | 672 | 506 | 78 | 54 | 70 | 265 | 215 | 216 |
| 027F1021 | PM1-50 | 1008 | 963 | 726 | 113 | 87 | 102 | 437 | 354 | 356 |
| 027F1026 | PM1-65 | 1876 | 1793 | 1350 | 167 | 158 | 187 | 695 | 563 | 565 |
| 027F1031 | PM3-20 | 164 | 157 | 119 | 18 | 14 | 16 | 55 | 45 | 45 |
| 027F1032 | PM3-25 | 258 | 247 | 186 | 30 | 23 | 27 | 97 | 79 | 79 |
| 027F1033 | PM3-32 | 399 | 381 | 287 | 44 | 34 | 40 | 152 | 123 | 123 |
| 027F1034 | PM3-40 | 703 | 672 | 506 | 78 | 54 | 70 | 265 | 215 | 216 |
| 027F1035 | PM3-50 | 1008 | 963 | 726 | 113 | 87 | 102 | 437 | 354 | 356 |
| 027F1036 | PM3-65 | 1876 | 1793 | 1350 | 167 | 158 | 187 | 695 | 563 | 565 |
| PM regulators flanges | ||||
| Part Number | flange Type | weld flange size | suits Model | Description |
| 027N1220 | 3 | 3/4” | PM-20 / PM-25 | Code numbers apply to one flange set consisting of an inlet and outlet flange. |
| 027N1225 | 3 | 1” | ||
| 027N2332 | 10 | 1-1/4” | PM-32 | |
| 027N2440 | 11 | 1-1/2” | PM-40 | |
| Part Number | To suit | Type & size |
| 027N2450 | PM1-40/PM3-40 | Weld flange 2" |
| 027N2550 | PM1-50/PM3-50 | Weld flange 2" |
| 027N2565 | PM1-50/PM3-50 | Weld flange 2-1/2" |
| 027N2665 | PM1-65/PM3-65 | Weld flange 2-1/2" |
| 027N2680 | PM1-65/PM3-66 | Weld flange 3" |
