| Type: | Scroll | Model Number: | SM147A4ALB |
|---|---|---|---|
| E.E.R: | 12.2Btu/h/W | COP: | 3.58W/W |
| Power: | 380-460V/3/50~60Hz | Weight: | 67.0kgs |
| Place of Origin: | France | Lubrication Style: | Lubricated |
| Power Source: | AC Power | Color: | Blue |
| Refrigerant: | R22 | ||
| برجسته: | ,,copeland refrigeration compressors |
||

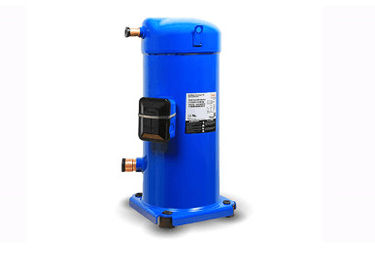

12HP Scroll type Performer Compressor SM147A4ALB FOR R22
Performer compresor
Feature:
1.high efficiency
2.good reliability
3.low noise
4.low vibration
Performer scroll compressor is made by in TianJin China,
Used for refrigerantions
Can work in 50Hz and 60Hz
voltage:380-400V or 460V
SM and SY series can be used in R22 refrigerant
Model |
Nominal Cooling | Nominal cooling capacity | input power | efficiency | lubricant | weight | ||
| 50Hz | COP | E.E.R | charge | Kg | ||||
| HP | W | Btu/h | kW | W/W | Btu/h/W | dm3 | ||
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 3.25 | 72 |
| SM090 | 7.5 | 21800 | 74400 | 6.54 | 3.33 | 11.4 | 3.25 | 72 |
| SM100 | 8 | 23100 | 79000 | 6.96 | 3.33 | 11.3 | 3.25 | 72 |
| SM110 | 9 | 25900 | 88600 | 7.82 | 3.32 | 11.3 | 3.25 | 80 |
| SM115 | 9.5 | 28000 | 95600 | 8.31 | 3.37 | 11.5 | 3.8 | 80 |
| SM120 | 10 | 30100 | 102800 | 8.96 | 3.36 | 11.5 | 3.25 | 80 |
| SM125 | 10 | 30100 | 102800 | 8.93 | 3.37 | 11.5 | 3.8 | 80 |
| SM147 | 12 | 36100 | 123200 | 10.8 | 3.34 | 11.4 | 3.3 | 86 |
| SM160 | 13 | 39100 | 133500 | 11.6 | 3.37 | 11.5 | 4 | 94 |
| SM161 | 13 | 39000 | 133200 | 11.59 | 3.37 | 11.5 | 3.3 | 86 |
| SM175 | 14 | 42000 | 143400 | 12.46 | 3.37 | 11.5 | 6.6 | 103 |
| SM185 | 15 | 45500 | 155300 | 13.62 | 3.34 | 11.4 | 6.6 | 103 |
| SY240 | 20 | 61834 | 211760 | 18.78 | 3.29 | 11.2 | 8 | 160 |
| SY300 | 25 | 78086 | 267400 | 23.6 | 3.31 | 11.3 | 8 | 160 |
| Item | Scroll compressor |
| Model | SM147A4ALB |
| Brand | |
| Power | 380-460V/3/50~60Hz |
| Displacement | 193.5cm3/rev |
| Capacity | 123.0kBtu/h |
| COP | 3.58W/W |
| Package | 8pcs/pallet |
| Certification | CE |
| Application | Air conditioning, HVAC system |
