| Piston Type: | Scroll | Power Source: | AC Power |
|---|---|---|---|
| Drive Mode: | Electric | Horse Power: | 7.5HP |
| Configuration: | Stationary | Mute: | Yes |
| Voltage: | 380/420v | connection: | Rotalock |
| Electric supply: | 3ph 50hz | ||
| برجسته: | ,,commercial refrigeration compressor |
||

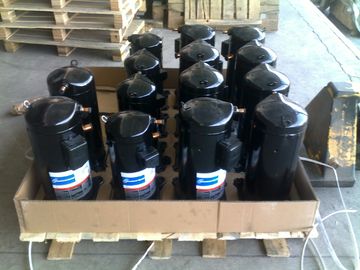

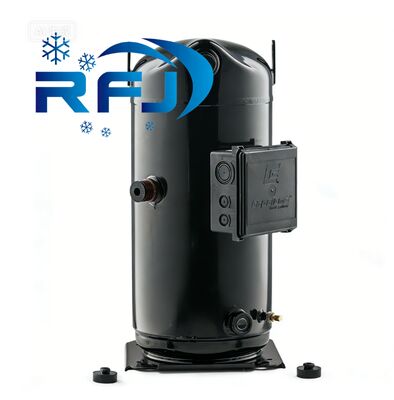

7.5hp Copeland Refrigeration ZR90K3E TWD 961 scroll compressor
Specifications:
Copeland Scroll Compressor 20–40 HP
| Brand: | Copeland |
|---|---|
| Connection: | Rotalock |
| Dim 1 (mm): | 525 |
| Model Number: | ZR 90K3E TWD 961 |
| Voltage: | 380/420 |
| Warranty: | 1 Year |
| Depth With Decoration Panel (mm): | 319 |
| Displacement CC: | 20,9 |
| Electric Supply: | 380-420V / 50Hz / 3ph |
| Electrical Rating: | 17 |
| Phase: | Three Phase |
| Refrigerant: | Refer to Copeland literature for approved refrigerants |
| Refrigerant Suitability: | R407C;R134A;R22 |
| Tube Connection Size (mm): | - |
| Valve Connections: | 1.1/8 |
| Width With Decoration Panel (mm): | 357 |
| Horse Power: | 7,5 |
| Application Temperature (C): | - |
| Application Temperature (C): | - |
| Phase | Model | Horse Power/HP | Displacement (m3/h) | ARI 7.2/54.4°C | Weight/Kg | Height /mm | |
| Cooling (W) | Input (W) | ||||||
| 1 Phase | ZR16K3-PFJ | 1.33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| ZR18K3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 | |
| ZR20K3-PFJ | 1.69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 | |
| ZR22K3-PFJ | 1.83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 | |
| ZR24K3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 | |
| ZR26K3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 | |
| ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 | |
| ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 | |
| ZR32K3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 | |
| ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 | |
| ZR36K3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 | |
| ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 | |
| ZR42K3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 | |
| ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 | |
| 3 Phase | ZR22K3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| ZR24K3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 | |
| ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382.8 | |
| ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 | |
| ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 | |
| ZR32K3-TFD | 2.67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 | |
| ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 | |
| ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 | |
| ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 | |
| 2ZR42K3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 | |
| ZR45KC-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 | |
| ZR46KC-TFD | 3.83 | 10.95 | 11100 | 3390 | 34.9 | 456.9 | |
| ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 | |
| ZR49KC-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 | |
| ZR54KC-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 | |
| ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 | |
| ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 | |
| ZR68KC-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 | |
| ZR72KC-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 | |
| ZR81KC-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 | |
| ZR84KC-TFD | 7 | 19.75 | 20330 | 6140 | 56.7 | 495.3 | |
| ZR94KC-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 | |
| ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 | |
| ZR125KC-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 | |
| ZR90K3-TWD | 7.5 | 20.9 | 21540 | 6620 | 91 | 542 | |
| ZR11M3-TWD | 9 | 24.9 | 25840 | 7805 | 91 | 542 | |
| ZR12M3-TWD | 10 | 28.8 | 29890 | 8955 | 92 | 542 | |
| ZR16M3-TWD | 13 | 35.6 | 37330 | 11175 | 98 | 557 | |
| ZR19M3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 | |
