| Piston Type: | Scroll | Power Source: | AC Power |
|---|---|---|---|
| Drive Mode: | Electric | Horse Power: | 12HP |
| Configuration: | Stationary | Temperature: | Med/High Temperature |
| Lubrication Style: | Oil-less | ||
| برجسته: | ,,copeland refrigeration compressors |
||

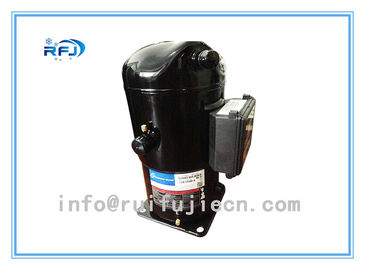

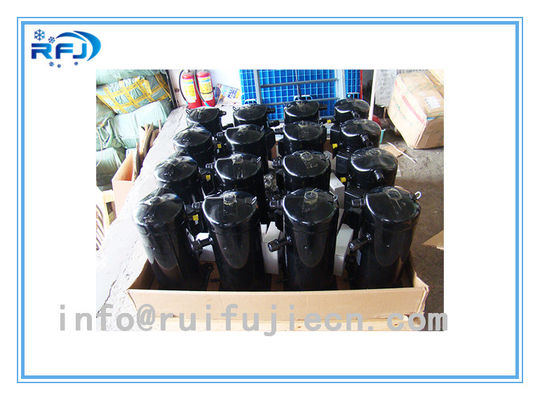

Refrigeration 12HP Copeland Scroll Compressor ZR144K3 for Air Conditioner
Specifications:
Description:
1.Models have : ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD, ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....
2.The are Copeland scroll compressors, can be used for air conditioning and refrigeration.
3.We have models made in China,Thailand and Belguim.
4. 12 units packing with one pallet.
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
Copeland Scroll Compressor 7–15 HP
We can supply more ZR models as follow:
| copeland compressors - air conDitioning (cont' D) | |||||
| hBp compressor – three phase | |||||
| Model NO. | Cooling Capacity (rating point 7.2) | nominal hp | Displ. cc/rev | nom current | Weight |
| FLa | (Kg) | ||||
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
