جزئیات محصول:
پرداخت:
|
| نام تجاری: | Copeland | کاربرد: | خانه |
|---|---|---|---|
| ولتاژ: | 220V | فرکانس: | 50 هرتز |
| شماره مدل: | ZSI09KQE-PFS-527 | تایپ کنید: | قطعات تهویه مطبوع، کمپرسور |
| کد HS: | 8414301490 | بسته بندی حمل و نقل: | پالت / مورد چوبی |
| برجسته: | ,,copeland a c compressor |
||

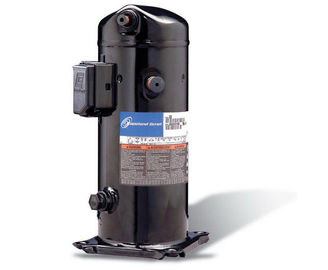

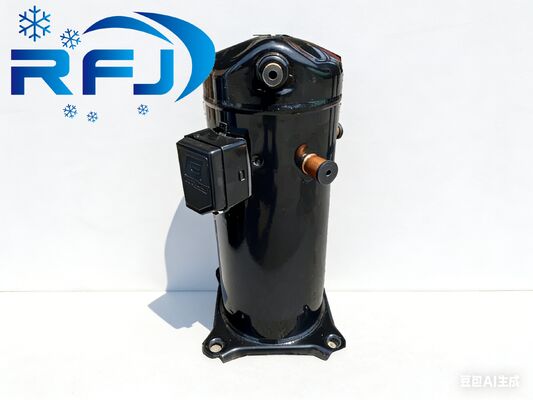

1 Phase Scroll Type Emerson Copeland Compressor 220v / 50hz ZSI09KQE-PFS-527
Feature:
Best applied cost for air-conditioning chillers,heat pumps,rooftops, dryer,process cooling and multi-evaporator systems.
Perfect match of capacity and power consumption to the desired load.
Widest range of continuous modulation from 10% to 100%.
Highest performance at full load.
Precise suction pressure control with associated energy savings.
Ease of design.
Characteristics:
High-efficiency
Low-noise Energy-saving
High-quality
Specifications:
| 1Phase PFS,220V,50HZ | ||||||||
| HP | cc/Rev. | kw | kw | PHase | HZ | A | KG | |
| 2 | ZSI06KQ-PFS-527 | 6.1 | 3.7 | 2 | 1phase | 50 | 11.5 | 22.2 |
| 2 | ZIS06KQE-PFS-527 | 6.1 | 3.7 | 2 | 13.6 | 22.2 | ||
| 2.6 | ZSI08KQ-PFS-527 | 7.1 | 4.3 | 2.2 | 13.1 | 22.2 | ||
| 2.6 | ZSI08KQE-PFS-527 | 7.1 | 4.3 | 2.2 | 15.6 | 22.2 | ||
| 3.6 | ZSI11KQ-PFS-527 | 9.95 | 6.3 | 3.2 | 18.4 | 29.9 | ||
| 3.6 | ZSI11KQE-PFS-527 | 9.95 | 6.3 | 3.2 | 19 | 29.9 | ||
| 4.6 | ZSI14KQ-PFS-527 | 12.7 | 8.1 | 4 | 23 | 29.9 | ||
| 4.6 | ZSI14KQE-PFS-527 | 12.7 | 8.1 | 4 | 23.8 | 29.9 | ||
| 3PHase PFS,380V,50HZ | ||||||||
| 2 | ZSI06KQ-PFS-527 | 6.1 | 3.7 | 2 | 3PHase | 50 | 5.2 | 22.2 |
| 2 | ZIS06KQE-PFS-527 | 6.1 | 3.7 | 2 | 5.7 | 22.2 | ||
| 2.6 | ZSI08KQ-PFS-527 | 7.1 | 4.3 | 2.2 | 5.6 | 22.2 | ||
| 2.6 | ZSI08KQE-PFS-527 | 7.1 | 4.3 | 2.2 | 6.1 | 22.2 | ||
| 3 | ZSI09KQ-PFS-527 | 8.03 | 4.8 | 2.4 | 6.2 | 22.2 | ||
| 3 | ZSI09KQE-PFS-527 | 8.03 | 4.8 | 2.4 | 6.7 | 22.2 | ||
| 3.6 | ZSI11KQ-PFS-527 | 9.95 | 6.3 | 3.2 | 6.6 | 29.9 | ||
| 3.6 | ZSI11KQE-PFS-527 | 9.95 | 6.3 | 3.2 | 7.5 | 29.9 | ||
| 4.6 | ZSI14KQ-PFS-527 | 12.7 | 8.1 | 4 | 8.2 | 29.9 | ||
| 4.6 | ZSI14KQE-PFS-527 | 12.7 | 8.1 | 4 | 9.2 | 29.9 | ||
| 5 | ZSI15KQ-PFS-527 | 14.4 | 8.7 | 4.6 | 10.1 | 29.9 | ||
| 5 | ZSI15KQE-PFS-527 | 14.4 | 8.7 | 4.6 | 11.9 | 29.9 | ||
| 6 | ZSI18KQ-PFS-537 | 17.1 | 10.6 | 5.5 | 11.2 | 37.4 | ||
| 6 | ZSI18KQE-PFS-537 | 17.1 | 10.6 | 5.5 | 13.2 | 37.4 | ||
| 7 | ZSI21KQ-PFS-537 | 18.8 | 12 | 6.2 | 13.6 | 39.7 | ||
| 7 | ZSI21KQE-PFS-537 | 18.8 | 12 | 6.2 | 14.6 | 39.7 | ||
