| Model Number: | VRI54KS-TFP-542 | نام تجاری: | Copeland |
|---|---|---|---|
| Fan speed: | Automatic | Working mode: | Cool |
| Material: | Copper | Refrigerant: | R22 |
| voltage: | 380V | ||
| برجسته: | ,,copeland a c compressor |
||

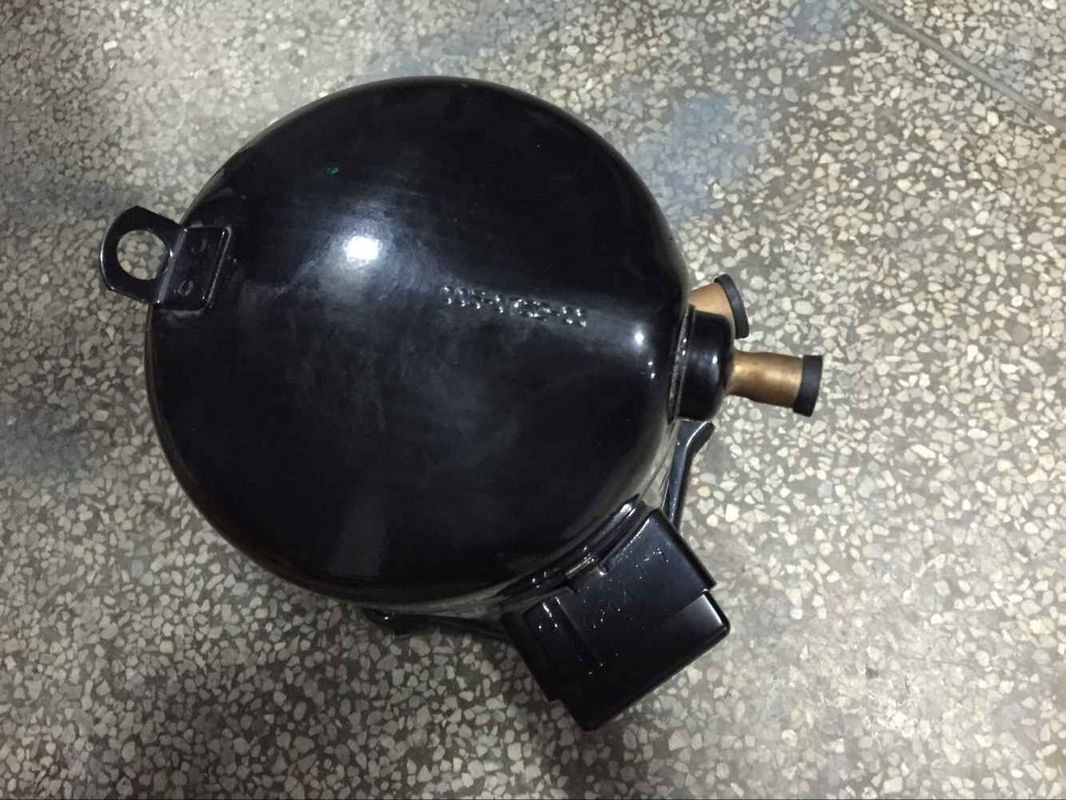

Copeland 380v / 50HZ 3Phase EVI compressor for air conditioner , VRI54KS-TFP-542
1) Environmentally friendly
2) Smaller compressor dimensions or smaller displacements possible
3) Low noise level, innovative compressor technology
4) Compact start equipment
5) Low energy consumption
6) High thermal working conditions
7) High product quality
8) Wide voltage range
| 220V/50HZ, 1phase R22 EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 2.5 | 41 | VRI30KS-PFS-582 | 7.35 | 2.27 | 3.24 | 11 | 22.1 |
| 2.8 | 46.2 | VRI34KF-PFS-582 | 8.25 | 2.61 | 3.16 | 11.8 | 22.1 |
| 380V/50HZ,3Phase EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 2.5 | 41 | VRI30KS-PFS-582 | 7.33 | 2.27 | 3.23 | 4.3 | 22.2 |
| 4.3 | 70.4 | VRI52KS-TFP-542 | 12.8 | 3.8 | 3.37 | 6.8 | 29.9 |
| 4.5 | 73.1 | VRI54KS-TFP-542 | 13.2 | 3.98 | 3.31 | 7.6 | 29.9 |
| 4.5 | 73.1 | VRI52KS-TFP-54E | 13.2 | 3.98 | 3.31 | 7.6 | 29.9 |
| 4.8 | 77.2 | VRI57KF-TFP-542 | 13.9 | 4.41 | 3.17 | 9.1 | 29 |
| 5.1 | 82.7 | VRI61KF-TFP-542 | 14.95 | 4.6 | 3.25 | 8.4 | 29 |
| 5.1 | 82.7 | VRI61KF-TFP-54E | 14.95 | 4.6 | 3.25 | 8.4 | 29 |
| 8 | 127.2 | VRI94KS-TFP-522 | 23.3 | 6.85 | 3.4 | 12.7 | 57.2 |
| 9 | 142.9 | VRI108KS-TFP-522 | 26.4 | 7.55 | 3.49 | 13.8 | 59.9 |
| 10.4 | 167.2 | VRI125KS-TFP-522 | 31 | 8.9 | 3.47 | 15.8 | 61.2 |
| 12 | 190.9 | VRI144KS-TFP-522 | 35 | 10.15 | 3.47 | 18.5 | 61.2 |
| (380V-420V)/50HZ,460V/60HZ,3Phase EVI | |||||||
| HP | cc/Rev. | model | kw | kw | w/w | A | KG |
| 8 | 127.2 | ZRI94KC-TFD-522 | 23.3 | 6.85 | 3.4 | 12.7 | 57.2 |
| 9 | 142.9 | ZRI108KC-TFD-522 | 26.4 | 7.6 | 3.47 | 13.8 | 59.9 |
| 10.4 | 167.2 | ZRI125KC-TFD-522 | 31 | 8.9 | 3.47 | 15.8 | 61.2 |
| 12 | 190.9 | ZRI144KC-TFD-522 | 35 | 10.1 | 3.47 | 18.5 | 61.2 |
| MODEL | PH | cooling capacity | Input Power | EER | voltage | frequency | running current | refrigerant | external dimension | ||
| btu/hr | w | btu/wxhr | COP | ||||||||
| W | W/W | V | A | ||||||||
| ZR42K3-TF5 | 3 | 34600 | 10200 | 3130 | 11.10 | 3.3 | 200/220 | 50Hz | 10.60 | R410A | P10 |
| ZR45K3-PFJ | 1 | 38200 | 11200 | 3380 | 11.30 | 3.3 | 200/240 | 50Hz | 16.40 | R410A | P13 |
| ZR45K3-TFD | 3 | 37500 | 11000 | 3320 | 11.30 | 3.3 | 380/420 | 50Hz | 5.90 | R410A | P13 |
| ZR45K3-TF5 | 3 | 37500 | 11000 | 3320 | 11.30 | 3.3 | 200/220 | 50Hz | 11.80 | R410A | P13 |
| ZR45KC-TFD | 3 | 37900 | 11200 | 3320 | 11.40 | 3.4 | 380/420 | 50Hz | 6.10 | R410A | P13 |
| ZR46K3-TF5 | 3 | 38100 | 11200 | 3440 | 11.10 | 3.3 | 200/220 | 50Hz | 10.40 | R410A | P15 |
| ZR46K3-TFD | 3 | 38100 | 11200 | 3440 | 11.10 | 3.3 | 380/420 | 50Hz | 6.00 | R410A | P15 |
| ZR46KC-TF5 | 3 | 37600 | 11100 | 3390 | 11.10 | 3.3 | 200/220 | 50Hz | 13.20 | R410A | P12 |
| ZR46KC-TFD | 3 | 37600 | 11100 | 3390 | 11.10 | 3.3 | 380/420 | 50Hz | 6.90 | R410A | P12 |
| ZR47K3-PFJ | 1 | 39400 | 11600 | 3460 | 11.40 | 3.4 | 200/220 | 50Hz | 16.80 | R410A | P14 |
| ZR47K3-TFD | 3 | 38800 | 11400 | 3430 | 11.30 | 3.3 | 380/420 | 50Hz | 6.00 | R410A | P14 |
| ZR47K3-TF5 | 3 | 38800 | 11400 | 3560 | 10.90 | 3.2 | 200/220 | 50Hz | 12.90 | R410A | P14 |
| ZR47KC-TFD | 3 | 39400 | 11600 | 3430 | 11.50 | 3.4 | 380/420 | 50Hz | 6.30 | R410A | P14 |
| ZR47KC-TF5 | 3 | 39400 | 11600 | 3490 | 11.30 | 3.3 | 200/220 | 50Hz | 13.80 | R410A | P14 |
| VR48KS-TFP | 3 | 40500 | 11900 | 3600 | 11.30 | 3.3 | 380 | 50Hz | 6.10 | R410A | P19 |
| VR54KS-TFP | 3 | 45000 | 13200 | 3920 | 11.50 | 3.4 | 380 | 50Hz | 7.40 | R410A | P19 |
| VR57KF-TFP | 3 | 47500 | 14000 | 4320 | 11.00 | 3.2 | 380 | 50Hz | 9.10 | R410A | P19 |
| VR57KS-TFP | 3 | 47500 | 14000 | 4130 | 11.50 | 3.4 | 380 | 50Hz | 7.75 | R410A | P19 |
| ZR57KH-TFD | 3 | 47800 | 14100 | 4190 | 11.40 | 3.4 | 380 | 50Hz | 7.40 | R410A | P15 |
| VR61KF-TFP | 3 | 51000 | 15000 | 4630 | 11.00 | 3.2 | 380 | 50Hz | 8.30 | R410A | P19 |
| ZR61KH-TFD | 3 | 51100 | 15000 | 4440 | 11.50 | 3.4 | 380/420 | 50Hz | 7.80 | R410A | P15 |
| ZR68KC-PFJ | 1 | 57000 | 16800 | 5130 | 11.60 | 3.3 | 220/240 | 50Hz | 24.50 | R410A | P12 |
| ZR68KC-TF5 | 3 | 57500 | 16900 | 4960 | 11.60 | 3.4 | 200/220 | 50Hz | 17.10 | R410A | P12 |
| ZR68KC-TFD | 3 | 57500 | 16900 | 4960 | 11.60 | 3.4 | 380/420 | 50Hz | 8.60 | R410A | P12 |
| ZR72KC-TF5 | 3 | 60500 | 17800 | 5180 | 11.70 | 3.4 | 200/220 | 50Hz | 18.40 | R410A | P12 |
| ZR72KC-TFD | 3 | 60500 | 17800 | 5180 | 11.70 | 3.4 | 380/420 | 50Hz | 8.80 | R410A | P12 |
| ZR81KC-TF5 | 3 | 67500 | 19800 | 5960 | 11.30 | 3.3 | 200/220 | 50Hz | 22.00 | R410A | P17 |
| ZR81KC-TFD | 3 | 68000 | 20000 | 5810 | 11.70 | 3.4 | 380/420 | 50Hz | 10.50 | R410A | |
