| ولتاژ: | 380 ولت | وزن: | 37 کیلو گرم |
|---|---|---|---|
| گواهی: | CE,VDE,CC | گارانتی: | یک سال |
| مبرد: | R22 | منبع قدرت: | برق |
| برجسته: | ,,hitachi ac compressor |
||

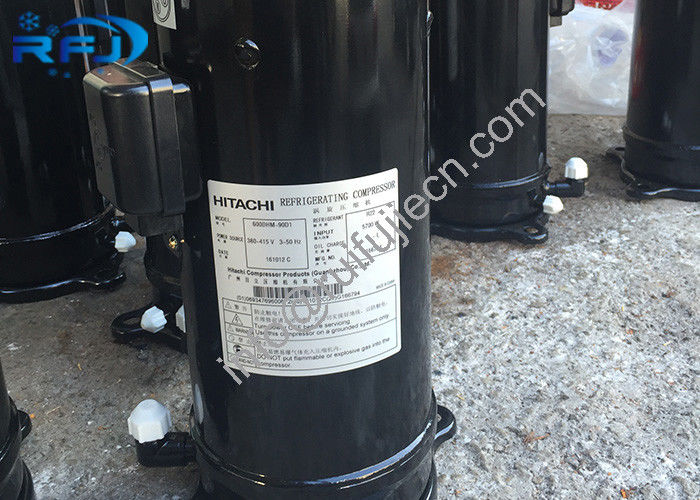

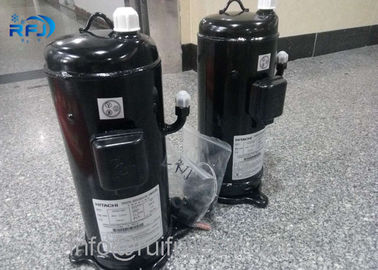

Model 503DH-83C2 Hitachi Brand Air Conditioner Compressorfor for sale
1.Product Name
Hitachi compressor
Model: 503DH-80D2
Voltage: 380~415V/3phase/50HZ
Refrigerant:R22
BTU:50800
Capacity:14900W
COP:3.4
2.All the following model could supply:
| Type | Model | Refrigerant | Cooling Capacity | Test Electricity | Power | Current | COP | Oil filled | |
| BTU/H | WATTS | WATTS | RLA | W/W | L | ||||
| Standard | 303DH-47D2 | R22 | 29500 | 8650 | 380V 3~50Hz | 2700 | 4.8 | 3.2 | 1.2 |
| 303DH-50D2 | R22 | 32220 | 9450 | 380V 3~50Hz | 2900 | 5.3 | 3.2 | 1.2 | |
| 353DH-56D2 | R22 | 35460 | 10400 | 380V 3~50Hz | 3200 | 5.7 | 3.25 | 1.2 | |
| 403DH-64D2 | R22 | 40240 | 11800 | 380V 3~50Hz | 3600 | 6.3 | 3.4 | 1.2 | |
| 453DH-72D2 | R22 | 46040 | 13500 | 380V 3~50Hz | 4000 | 7 | 3.4 | 1.4 | |
| 503DH-80D2 | R22 | 50800 | 14900 | 380V 3~50Hz | 4400 | 7.5 | 3.4 | 1.4 | |
| 503DH-83D2 | R22 | 52510 | 15400 | 380V 3~50Hz | 4550 | 8 | 3.4 | 1.4 | |
| 603DH-90D2 | R22 | 57290 | 16800 | 380V 3~50Hz | 5100 | 8.6 | 3.3 | 1.4 | |
| 803DH-95D2 | R22 | 60020 | 17600 | 380V 3~50Hz | 5300 | 9.1 | 3.3 | 1.4 | |
| Tandem | 303DH-47D2Y | R22 | 29500 | 8650 | 380V 3~50Hz | 2700 | 4.8 | 3.2 | 1.8 |
| 303DH-50D2Y | R22 | 32220 | 9450 | 380V 3~50Hz | 2900 | 5.3 | 3.2 | 1.8 | |
| 353DH-56D2Y | R22 | 35460 | 10400 | 380V 3~50Hz | 3200 | 5.7 | 3.25 | 1.8 | |
| 403DH-64D2Y | R22 | 40240 | 11800 | 380V 3~50Hz | 3600 | 6.3 | 3.25 | 1.8 | |
| 453DH-72D2Y | R22 | 46040 | 13500 | 380V ~50Hz | 4000 | 7 | 3.4 | 1.8 | |
| 503DH-80D2Y | R22 | 50800 | 14900 | 380V 3~50Hz | 4400 | 7.5 | 3.4 | 1.8 | |
| 503DH-83D2Y | R22 | 52510 | 15400 | 380V 3~50Hz | 4550 | 8 | 3.4 | 1.8 | |
| 603DH-90D2Y | R22 | 57290 | 16800 | 380V 3~50Hz | 5100 | 8.6 | 3.3 | 1.8 | |
| 603DH-95D2Y | R22 | 60020 | 17600 | 380V 3~50Hz | 5300 | 9.1 | 3.3 | 1.8 | |
Hitachi R407C AC Inverter Scroll Compressor's specification is below:
| MODEL | DESPL. | NOMINAL CAPACITY | INPUT POWER | COP | ||
| cm3/r | BTU/H | Matts | Matts | EER | W/W | |
| 303DHV-47B2(V) | 47 | 37510 | 11000 | 30-90 | 19.1 | 10.9 |
| 303DHV-47D2(V) | 47 | 37510 | 11000 | 30-90 | 8.9 | 11.2 |
| 403DHV-64D2(V) | 64 | 49790 | 14600 | 30-90 | 11.8 | 10.9 |
| 401DHV-64D2(V) | 64 | 63220 | 18540 | 20-115 | 10.8 | 10.9 |
| 503DHV-80D2(V) | 80 | 62470 | 18400 | 30-90 | 15.5 | 11.2 |
| SPECIFICATIONS FOR 503DH-83C2 | |||
|
Products Details |
Models: BSD122DT-P6AU | Type | Rotary / Hermetic |
| Power | Phase | 3 | |
| Horse Power | HP | 5 | |
|
Main performance parameters |
Cooling Capacity | Btu / h | 22900 |
| Cooling Capacity | W | 13240 | |
| Input Power | W | ||
|
Physcial parameters |
Hight | MM | |
| Weight | KG | 37 | |
| Q'ty / Pallet | PIECE | 16 | |
FAQ
Q1. What is your terms of packing?
A: we pack our goods packed with wooden case or carton.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3.What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. .We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
