| compressor model: | VHN5343-20 | Power Supply: | 380V/50HZ |
|---|---|---|---|
| Refrigerant: | R404A | Evaporative Temperature: | -20℃~-40℃ |
| suction pipe interface: | 76*2 mm | Exhaust Pipe Interface: | 57 |
| Outlet Interface: | 28 | Inlet Pipe interface: | 35 |
| Length: | 2200mm | Width: | 1250mm |
| Height: | 1600mm | ||
| برجسته: | ,,air cooled condensing unit |
||

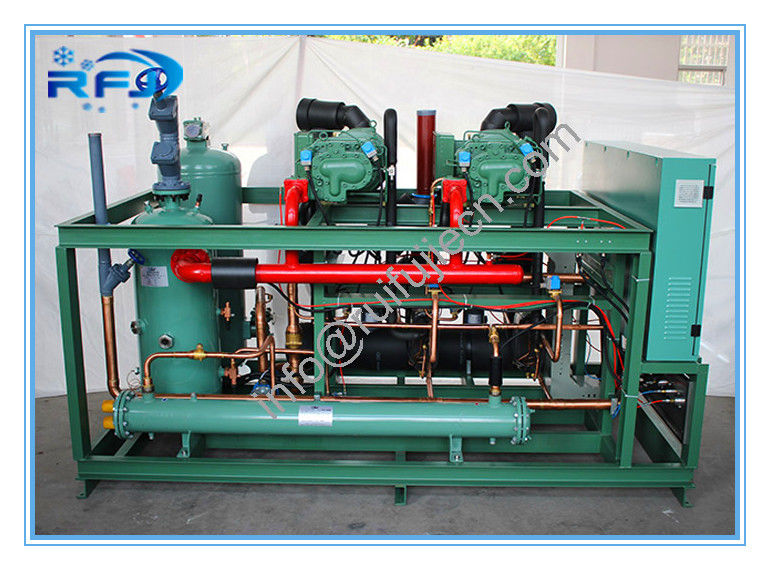

Two Screw compressor cooler condenser unit R404A 380V 50HZ model DM2B20RFL
We are a manufacturer, we can customize products for you according to your requirements.If you don't know which model is suitable for you, you could send message to us.We have several professional engineers to make a customized solution for you.
| Air Cooled Two Screw Compressor Rack(Medium&Low Temperature) | |||||||
| Model | DM2B20RFL | DM2B25RFL | DM2B30RFL | DM2B40RFL | DM2B50RFL | ||
| Evaporative Temperature | -20℃ ~ -D40℃ | ||||||
| Refrigerant | R404A | ||||||
| Power Supply | 380V/50HZ | ||||||
| Compressor Model | VHN5343-20 | VHN5353-25 | VHN5363-30 | VHN6451-40 | VHN6461-50 | ||
| Numbers of Compressors | 2 | 2 | 2 | 2 | 2 | ||
| capacity | Evaporation temperature -20℃ | cooling capacity(KW) | 84.2 | 98.2 | 112.4 | 135 | 153.6 |
| Electric Power | 54.2 | 60.2 | 69.8 | 77.4 | 93.6 | ||
| Evaporation temperature -30℃ | cooling capacity(KW) | 57.2 | 67 | 77.4 | 92.8 | 106.6 | |
| Electric Power | 50.6 | 57.4 | 64.8 | 72.2 | 58.8 | ||
| Evaporation temperature -40℃ | cooling capacity(KW) | 36.2 | 42.8 | 50.2 | 59.8 | 69.8 | |
| Electric Power | 46 | 52.2 | 59 | 66.4 | 77.6 | ||
| interface | suction pipe interface(mm) | 76 | 76 | 76 | 76 | 76 | |
| Exhaust pipe interface(mm) | 57 | 57 | 57 | 76 | 76 | ||
| Outlet interface(mm) | 28 | 45 | 45 | 57 | 57 | ||
| Inlet pipe interface(mm) | 35 | 57 | 57 | 76 | 76 | ||
| Size | Length(mm) | 2200 | 2200 | 2200 | 2800 | 2800 | |
| Width(mm) | 1250 | 1250 | 1250 | 1550 | 1550 | ||
| Height(mm) | 1600 | 1600 | 1600 | 1900 | 1900 | ||
| Note:Condensation temperature +40℃ with economizer | |||||||
Type:Condensing Unit
Place of Origin:China (Mainland)
Brand Name:Damai
Model Number:DM3B20RFL
Certification:CE, ISO,CCC
Voltage:380V/50HZ
Color:Green
Application:Refrigeration Parts
Packaging Details
Packed in plywood case, safe and free of fumigation
Delivery Time
15days after payment
